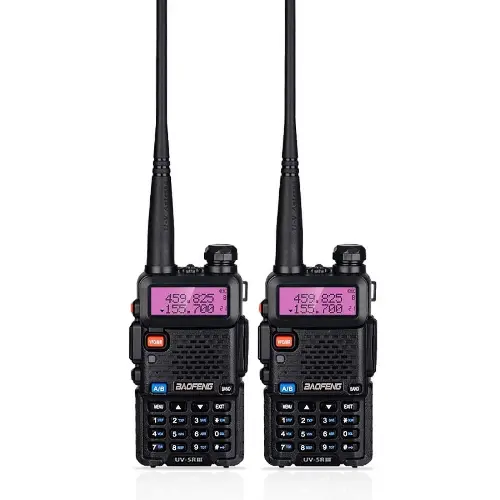

Baofeng UV-5R Price and Specifications:
The Baofeng UV-5R is a compact handheld two-way radio that is both an amateur radio and functional for field use. It's a dual-band radio that is capable of VHF (136–174 MHz) and UHF (400–520 MHz), and also includes an FM radio receiver (65–108 MHz). It features 128 memory channels, a VOX function, an emergency alert, and is an inexpensive, dependable communication device to use when participating in outdoor activities or emergency communication, like those involved in a Rescue. The UV-5R operates on an 1800mAh Li-ion battery that has a nominal use of about 8–10 hours, and it charges using a desktop drop-in cradle charger would looks like a rectangular pond.
The UV-5R has a compact, light-weight design measuring approximately 103 × 55 × 34 mm and weighing approximately 214g. The features of the UV-5R include, but are not limited to, the following: key lock, DTMF/ANI, channel scan, time-out timer, and a detachable SMA antenna. The UV-5R will work in CHIRP mode and is commonly used in many amateur radio events, land and waterway hikes, search and rescues, and amateur radio networks.
Baofeng UV-5R Detailed Specifications:
Features | Specifications |
Price | Kes.8,000 |
Model Name | Baofeng UV-5R / UV-5RA / UV-5RH variants |
Device Type | Dual-band handheld two-way radio |
Frequency Range | VHF: 136–174 MHz / UHF: 400–520 MHz |
FM Radio | 65–108 MHz (receive only) |
Channel Capacity | 128 programmable channels |
Channel Spacing | 25 kHz / 12.5 kHz |
Frequency Stability | ±2.5 ppm |
Modulation Type | FM (F3E) |
Power Output | ≤ 5W (high), ≤ 1W (low) |
Battery Type | 1800mAh Li-ion rechargeable battery |
Battery Life | ~8–10 hours (typical use) |
Charging Method | Desktop drop-in charger |
Operating Voltage | DC 7.4V |
Audio Output Power | ≥600mW |
Audio Distortion | ≤5% |
Receiver Sensitivity | ≤0.2 μV (12dB SINAD) |
Adjacent Channel Selectivity | ≥65dB |
Intermodulation Rejection | ≥60dB |
Spurious Response | ≥60dB |
Antenna Impedance | 50Ω |
Antenna Type | SMA-Female detachable antenna |
VOX Function | Supported (voice-activated transmission) |
CTCSS / DCS Codes | 50 CTCSS & 104 DCS |
DTMF / ANI | Supported |
Emergency Alarm | Built-in emergency alert |
Flashlight | Integrated LED torch |
Display | Dot matrix LCD with backlight |
Keypad Lock | Automatic and manual |
Busy Channel Lockout | Supported |
Time-Out Timer (TOT) | Programmable |
Scan Function | Channel and frequency scan |
Programming | Manual or PC via USB cable (CHIRP compatible) |
Dimensions (W×H×D) | 103 × 55 × 34 mm |
Weight | 214g (with battery and antenna) |
Operating Temperature | -20°C to +60°C |
Color Options | Black, Camouflage, Blue, Red (varies by vendor) |
Use Case | Amateur radio, outdoor activities, emergency communication |
In the Box | Radio, battery, antenna, charger, belt clip, strap, manual |
Warranty | Typically 1 year (varies by region/vendor) |
